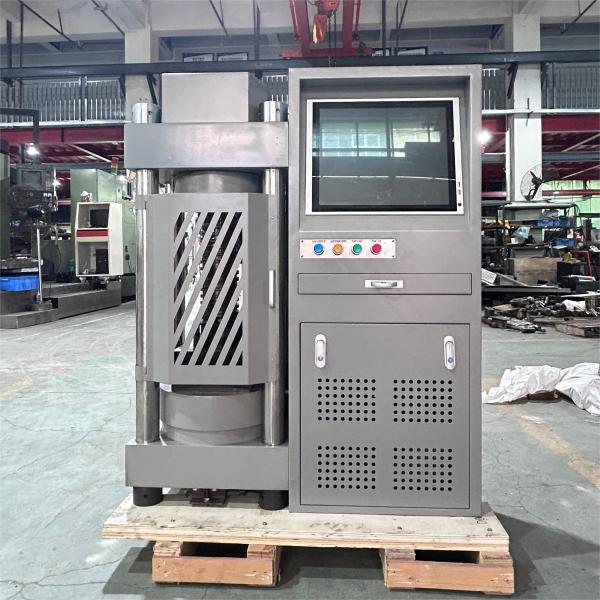

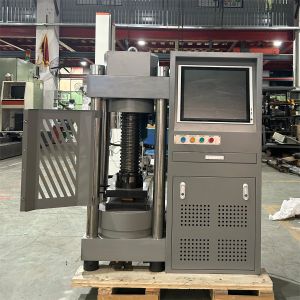

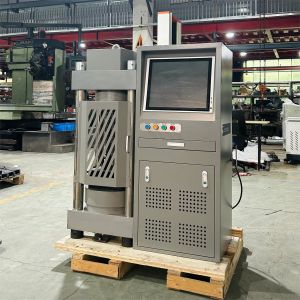

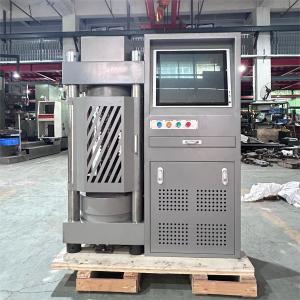

    Concrete Brick Compression Test Machine Equipment Hydraulic Pump Rated Pressure 40Mpa 2000Kn Max Load

    Ask Lasest Price
    Brand Name : lixian
    Model Number : HZ-009
    Certification : CE
    Price : negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200sets/ month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Concrete Brick Compression Test Machine Equipment Hydraulic Pump Rated Pressure 40Mpa 2000Kn Max Load

    Concrete Brick Compression Test Machine equipment Hydraulic Pump Rated Pressure 40Mpa 2000Kn Max Load

    Concrete Compression Test Machine Equipment Overview

    HZ-009 Concrete Hydraulic compression testing machine is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test, also used to test the compressive performance of other materials.
    Concrete Compression Test Machine Spatial Adjustment Method
    Electric lift
    The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the unidirectional valve, high pressure filter, pressure valve, servo valve, into the cylinder. Computer control signals to the servo valve, Control direction and opening of the servo valve, to control the flow into the cylinder, achieve constant test force control.
    System including digital servo valve, high-precision sensors, controllers and software, high control precision and reliability. Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.
    Concrete Compression Test Machine Main Performance Technical Specifications:
    Max load2000kN
    Test force measuring range4%-100%FS
    Test Force showed the relative error≤ indicating value±1%
    Test Force Resolution0.03kN
    Hydraulic pump rated pressure40MPa
    Upper and lower bearing plate size370×370mm
    Maximum distance330mm
    Piston diameterφ250mm
    Piston stroke50mm
    Motor Power0.77 kW
    Outside dimension (l*w*h)640×720×1500 mm
    Weight2000kg



    Recommend Products
    Universal testing machine, a material testing machine integrating tensile, bending, compression, shearing, ring stiffness and other functions. It is mainly used for the mechanical performance testing of metal and non-metal materials. It is used in industrial and mining enterprises, scientific research units, colleges and universities, engineering Ideal testing equipment for quality supervision stations and other departments.
